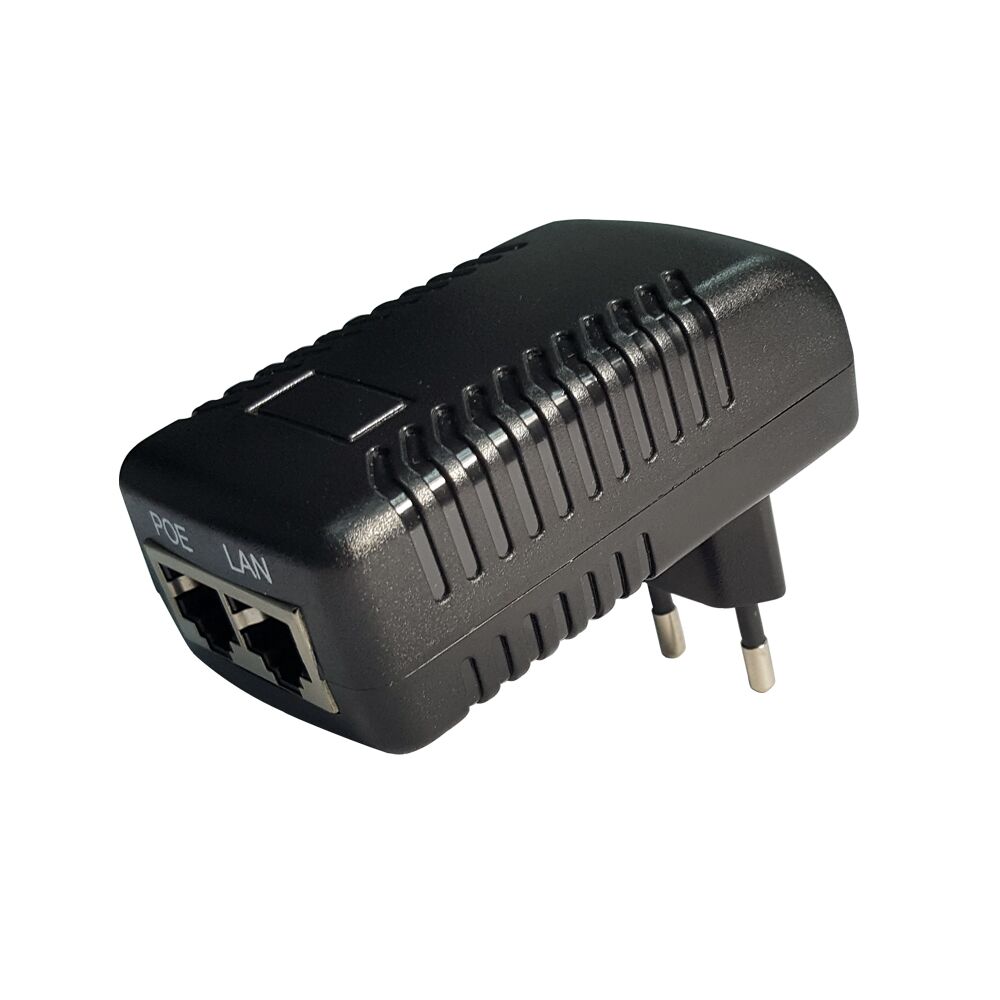

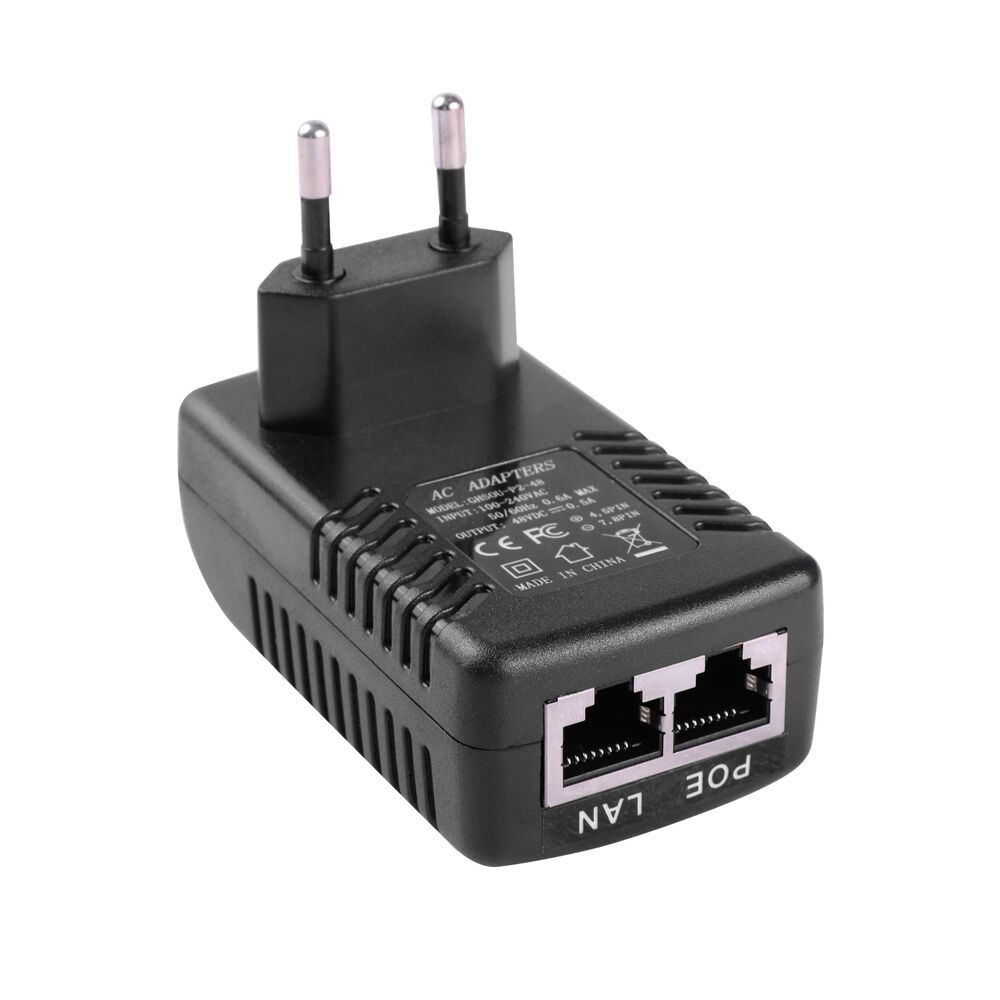

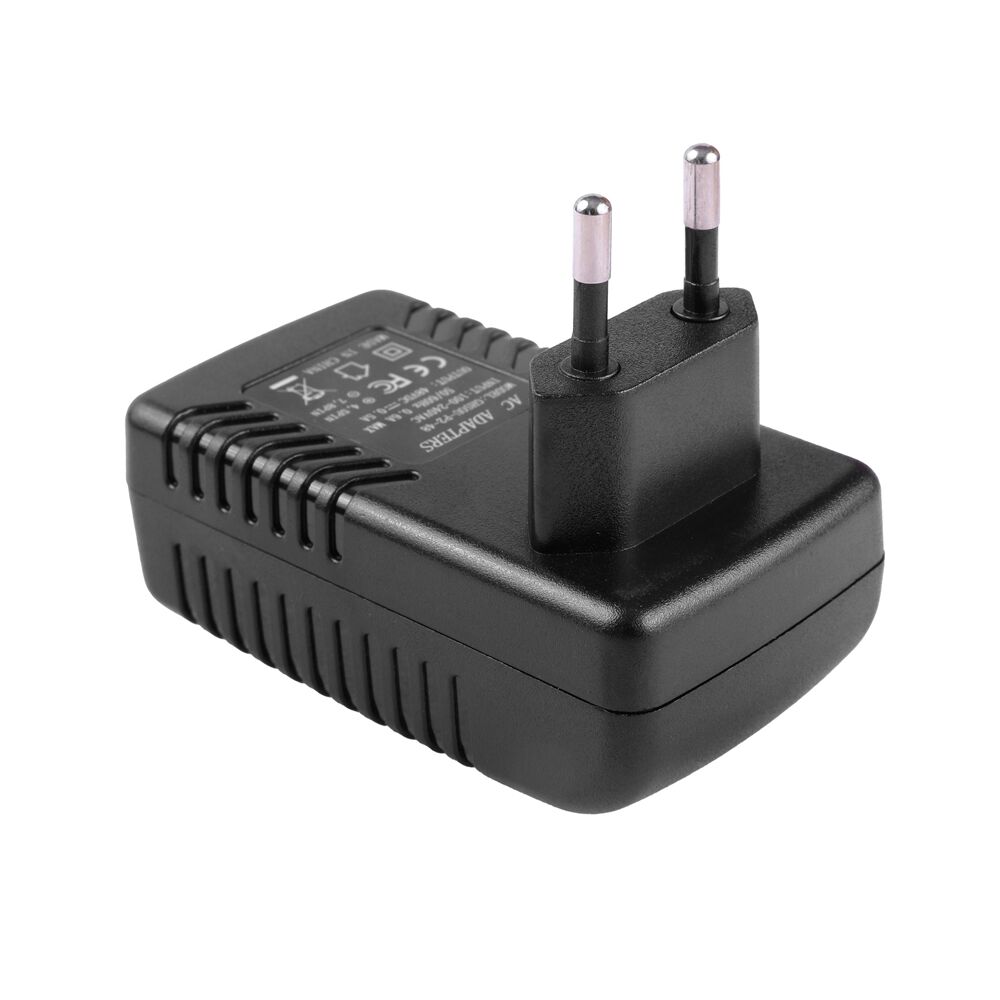

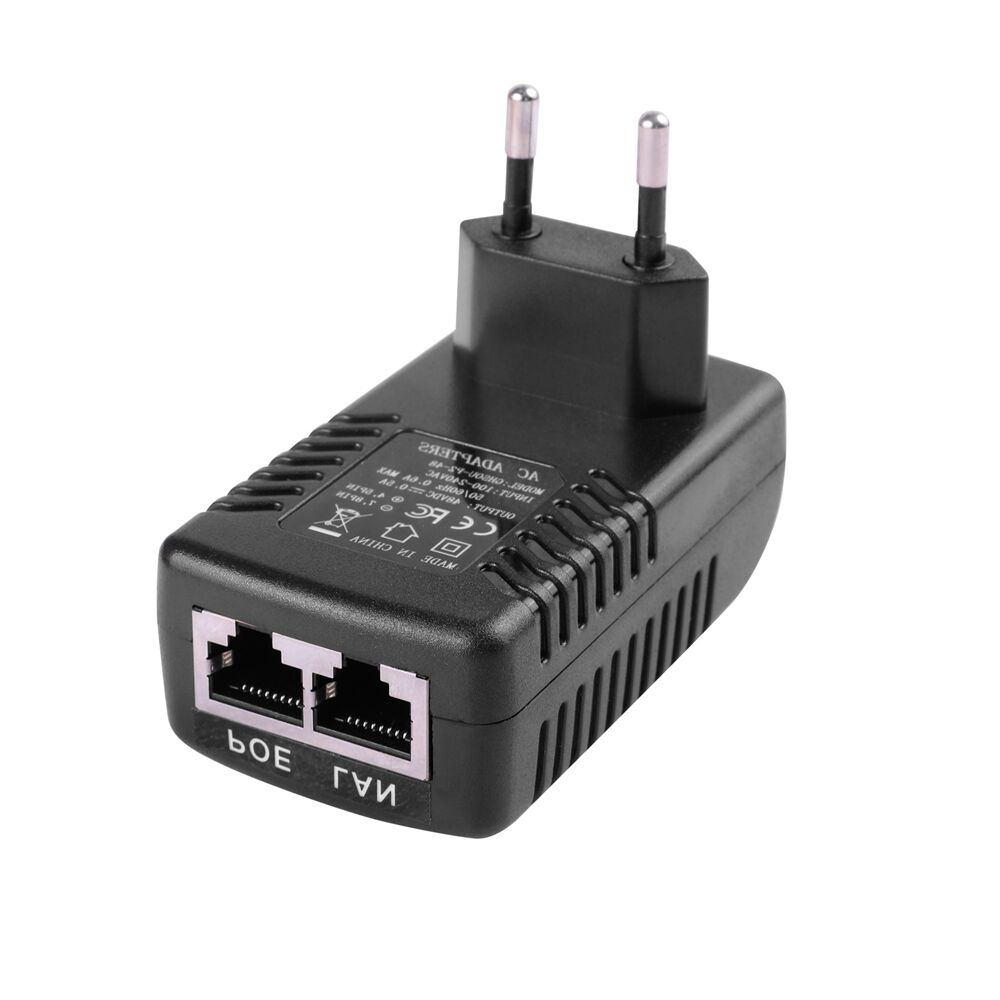

FINING 802.3af Compatible PoE Injector supplies Power over Ethernet to LAN devices such as Access Points, VoIP Phones, IP Cameras and HDMI Extenders.
| Interface | 1 x RJ45 Data In, 1 x RJ45 PoE Out |
|---|---|
| DC Output Voltage | 48-56V / 0.32A |
| Standard | IEEE802.3af |
| Power Requirement | 100-240V AC, 50/60Hz, 0.27A |
| Ethernet Data Rate | 100M/1G |
| End-Span/Mid-Span | Mid-Span |
| Operating Temperature | -10 to 50°C |
| CERTIFICATE TYPE | UL,FCC,CE certified |
FN-DAG-15.4C40 is a single port PoE Injector.It is a compact 10/100/1000Mbps desktop 802.3af PoE injector with
100/240VAC auto-ranging input. It works by supplying power to the remote device on the
unused Ethernet pins 4,5(V+) and 7,8(V-) .It supports both 10/100 Base-T and Gigabit device. It works for
15.4W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.
It complies to IEEE802.3af/at PoE standard.
FN-DAG-15.4C40 is designed for indoor use. The effective distance is 100 meters over Cat5e/Cat6 cables.
Applications
Device Pinouts
