15.4W IEEE 802.3AF COMPATIBLE DESKTOP POE INJECTORS

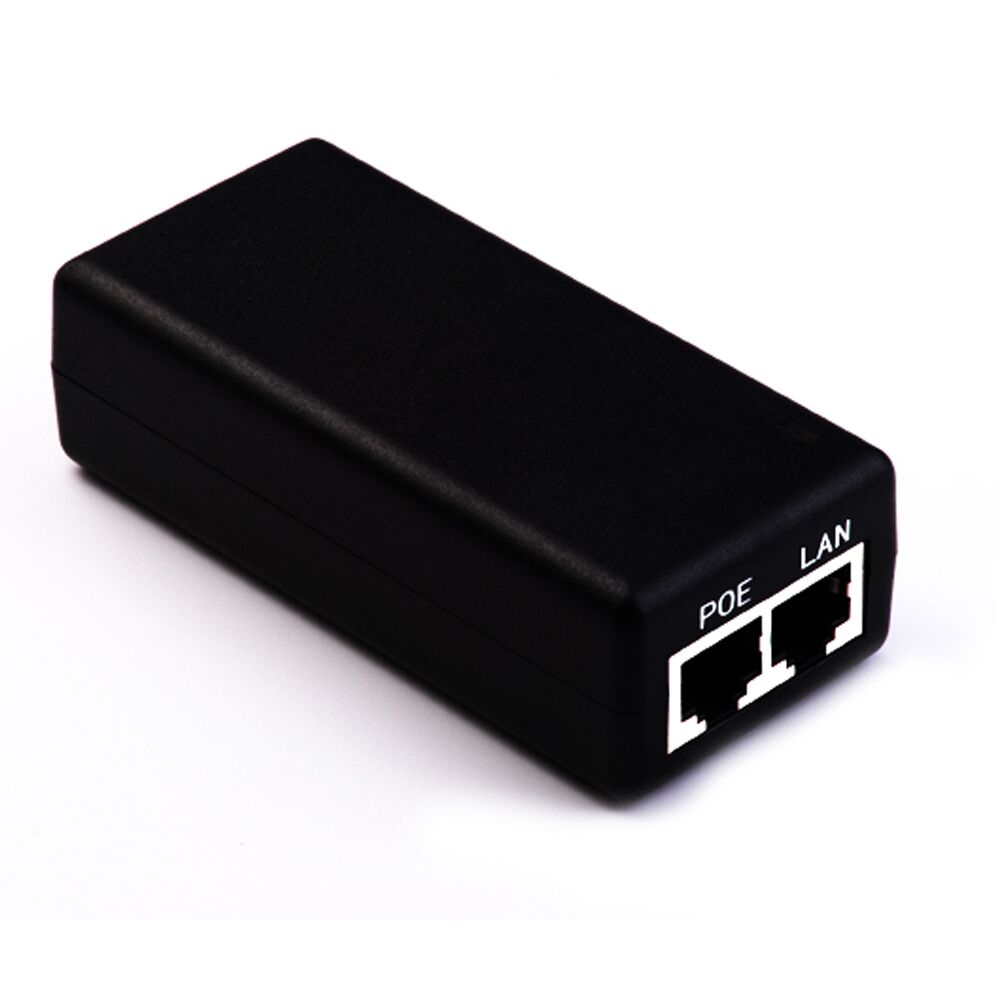

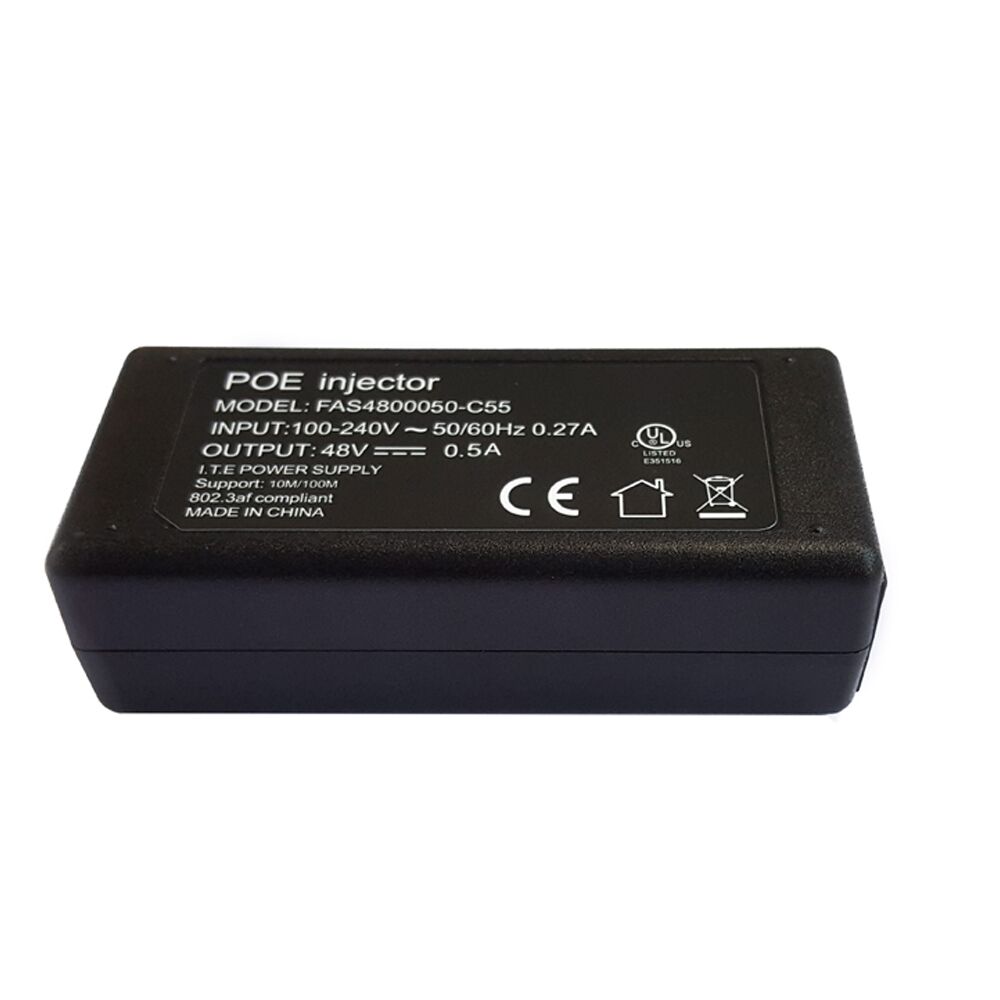

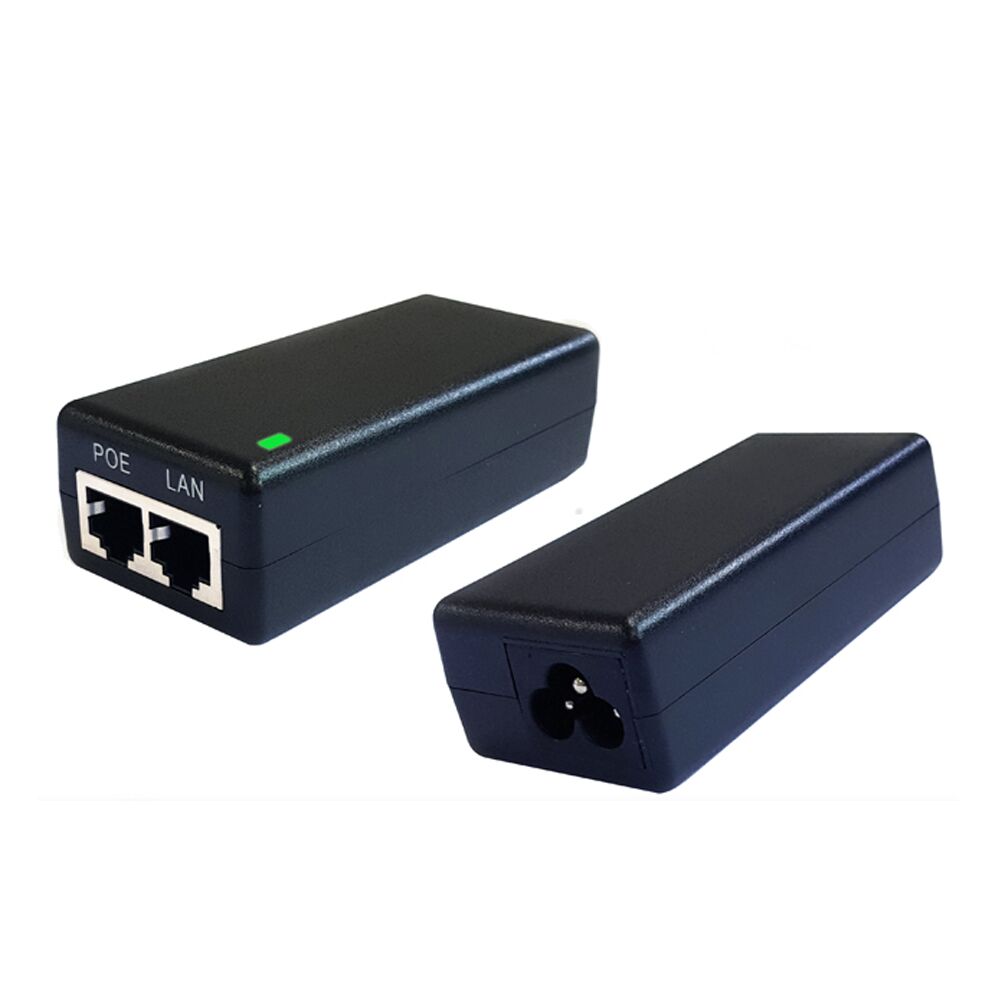

FN-DAG-15.4C55 is a single port PoE Injector.It is a compact 10/100/1000Mbps desktop 802.3af PoE injector with
100/240VAC auto-ranging input. It works by supplying power to the remote device on the
unused Ethernet pins 4,5(V+) and 7,8(V-) .It supports both 10/100 Base-T and Gigabit device. It works for
15.4W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.
It  complies to IEEE802.3af/at PoE standard.
FN-DAG-15.4C55 is designed for indoor use. The effective distance is 100 meters over Cat5e/Cat6 cables.

• Remotely Power Equipment thruCat5e/Cat6 up to 100m
• Autoranging Switching Power Supply: 100-240VAC
• Short Circuit, Over Current and Over Voltage Protection
• Powerful 15.4W Multi-Gigabit Active PoE Output
• 48V/56V 802.3af PoE Models Available
• CE /UL/FCC Compliant ,Meets RoHS Req uirements
• Compact size – Desktop Style / Non-vented Case

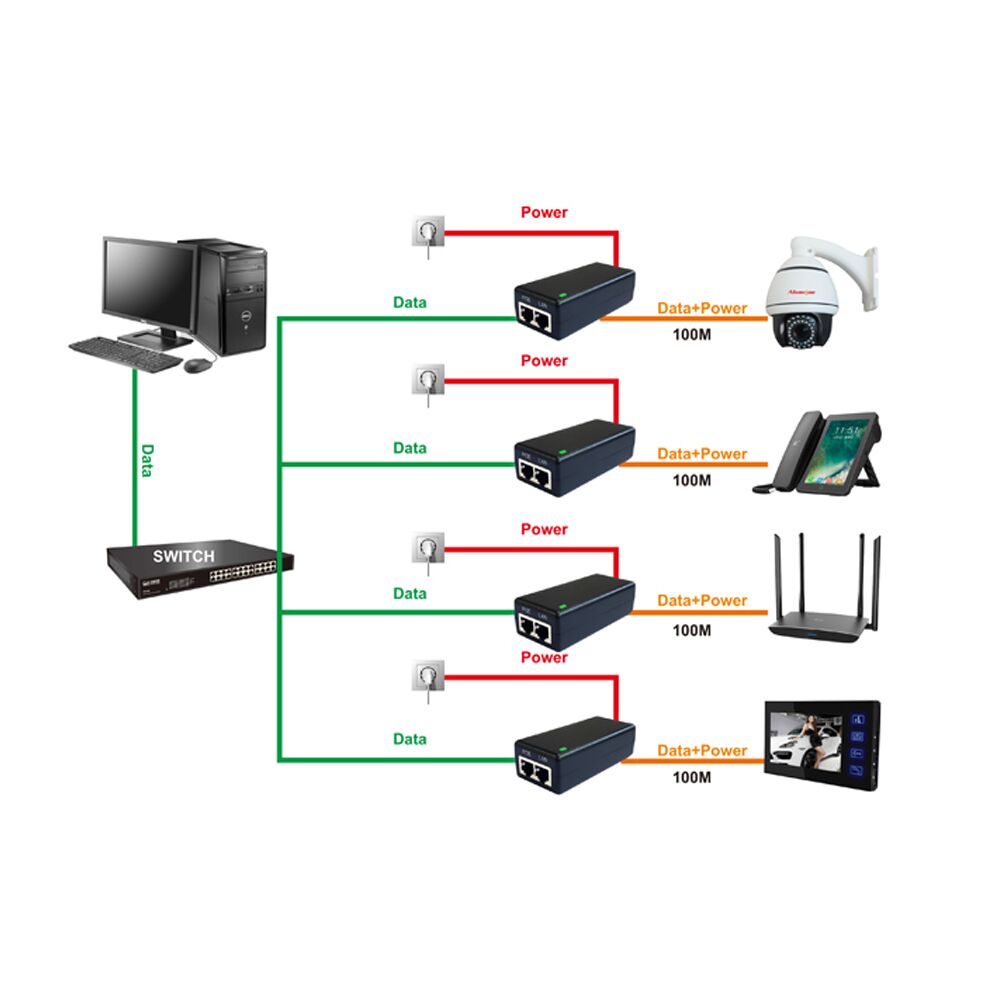

Applications

• Wireless Access Points and Client Devices
• IP Phone and Security Camera Systems

Device Pinouts
