FINING 802.3af Compatible PoE Injector supplies Power over Ethernet to LAN devices such as Access Points, VoIP Phones, IP Cameras and HDMI Extenders.
| Interface | 1 x RJ45 Data In, 1 x RJ45 PoE Out,1 x AC Input Power |
|---|---|
| DC Output Voltage | 48VDC,55VDC,56VDC |
| Standard | NONIEEE802.3 SOLUTIONS |
| Power Requirement | 100-240V AC, 50/60Hz, 1.5A |
| Ethernet Data Rate | 100M/1G/2.5G/5G |
| End-Span/Mid-Span | Mid-Span,End-Span |
| Operating Temperature | -10 to 50°C |
| CERTIFICATE TYPE | Design according to UL,FCC,CE |

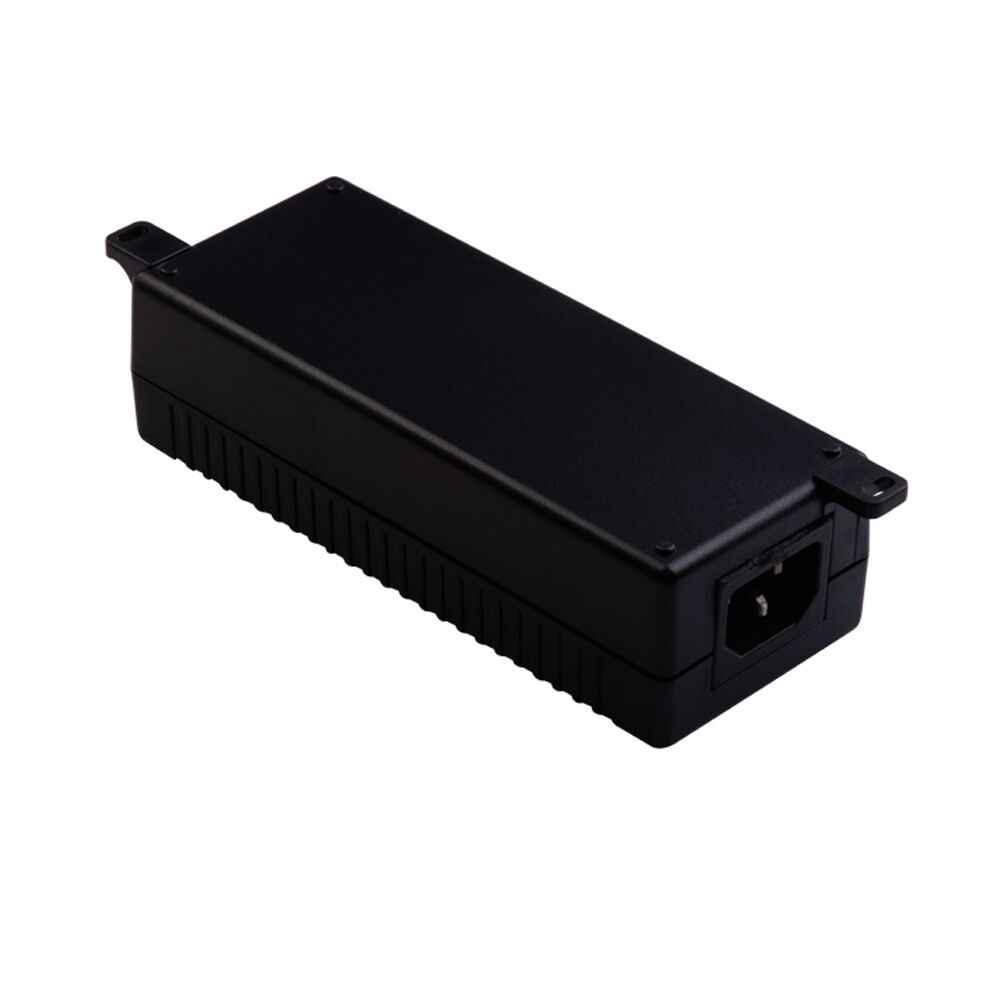

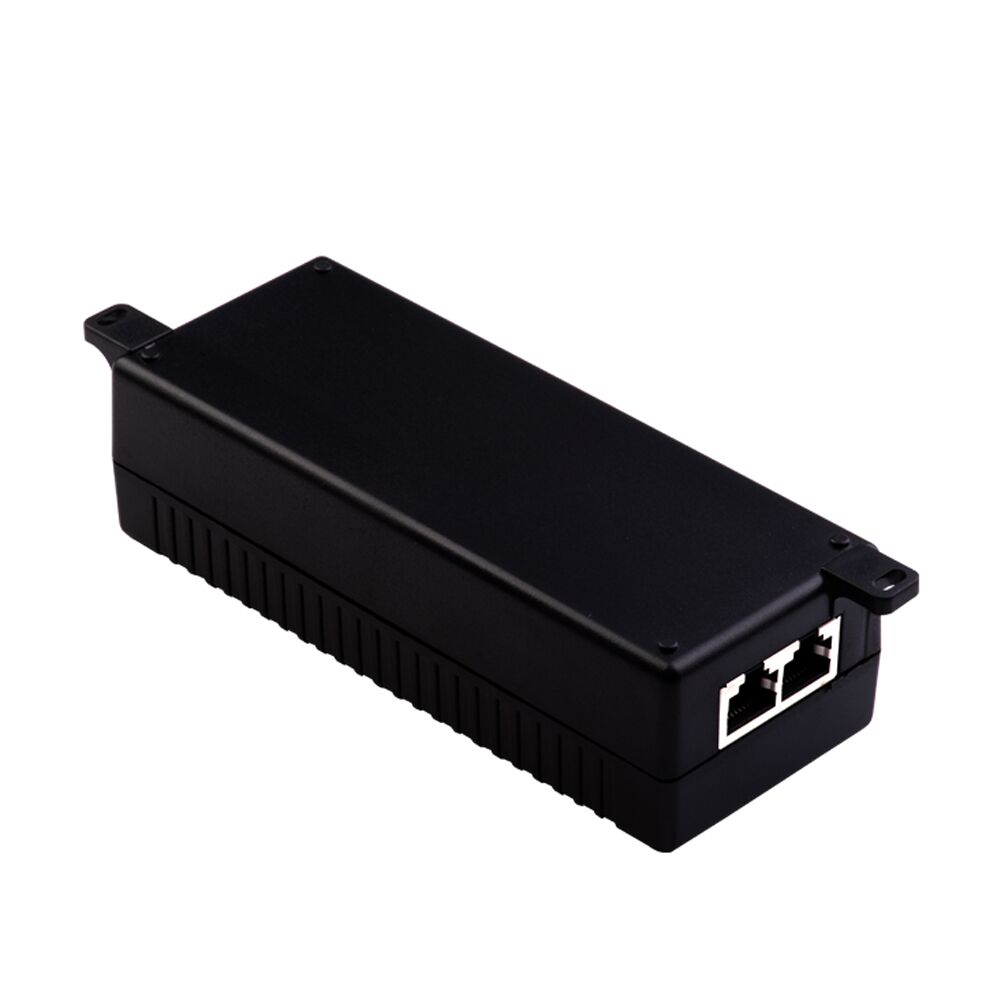

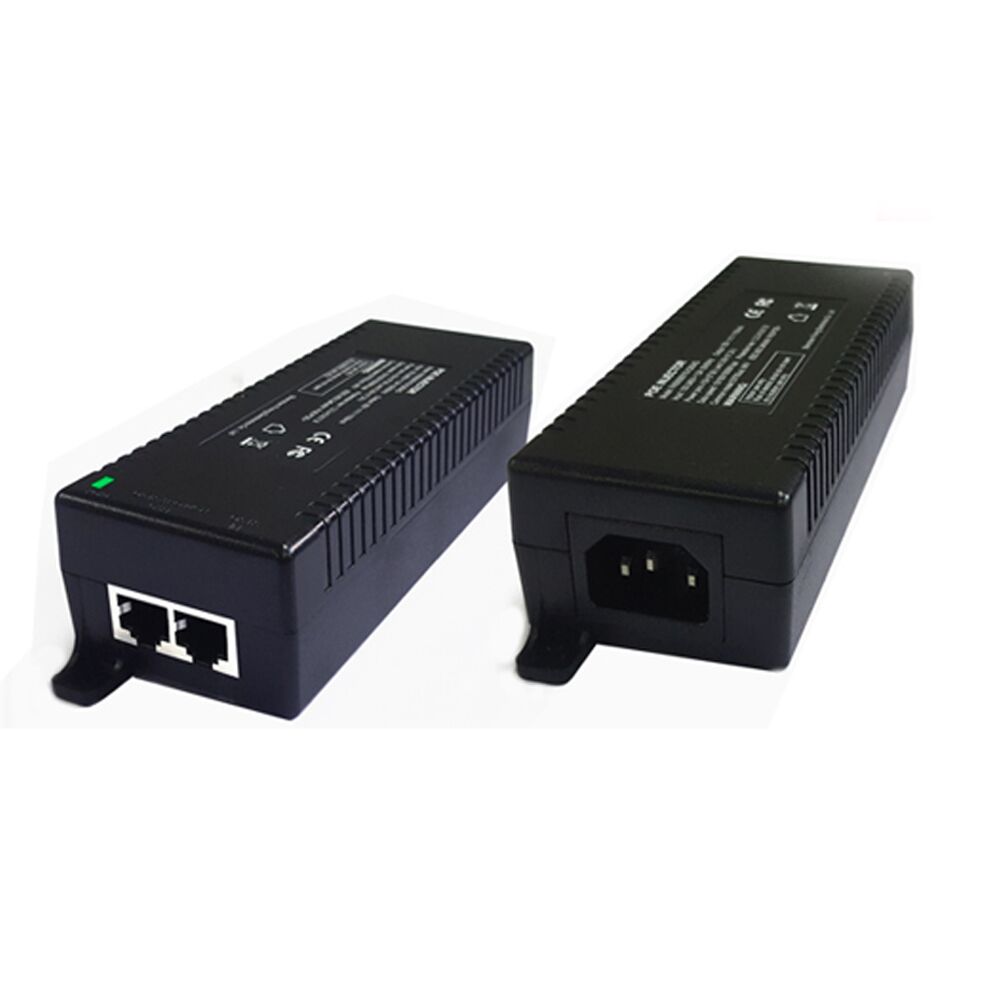

FN-DPG-60C60 is a single-port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over full 4 pairs with 6KV
surge protection. It supports both 10/100 Base-T and 1G/2.5G/5G device. It works for 60W PoE PDs, such as wireless APs,
base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals.
It is also compatible and safe to use with any IEEE802.3af/at/bt compliant terminals. FN-DPG-60C60 is designed for indoor
use. It works with 100-240Vac input.
It will directly power PDs without detecting.The effective distance is 100 meters over Cat5e/Cat6 cables. It is specially
suitable for working in complex power situations. It is easy to install with four mounting holes

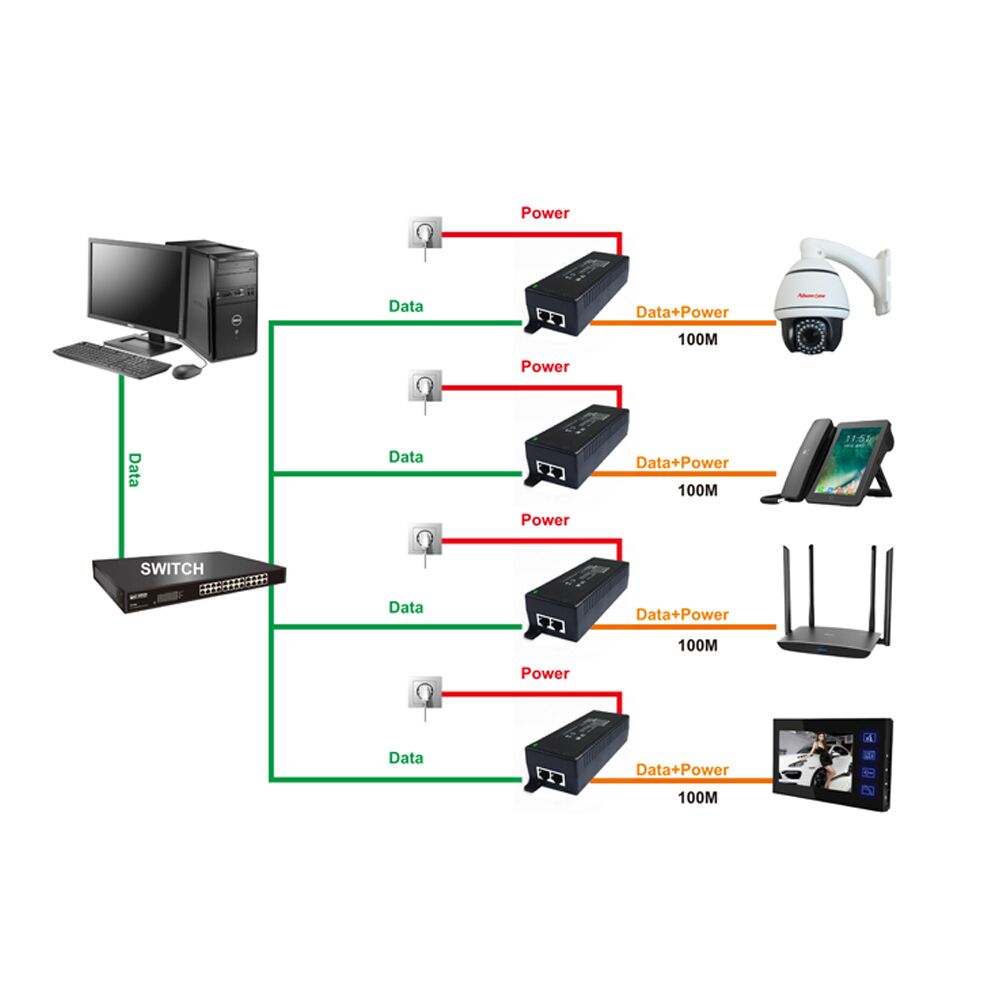

Applications
Device Pinouts
