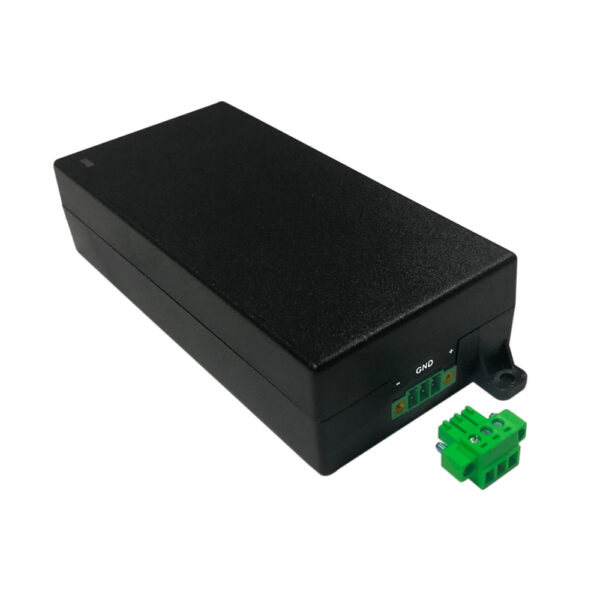

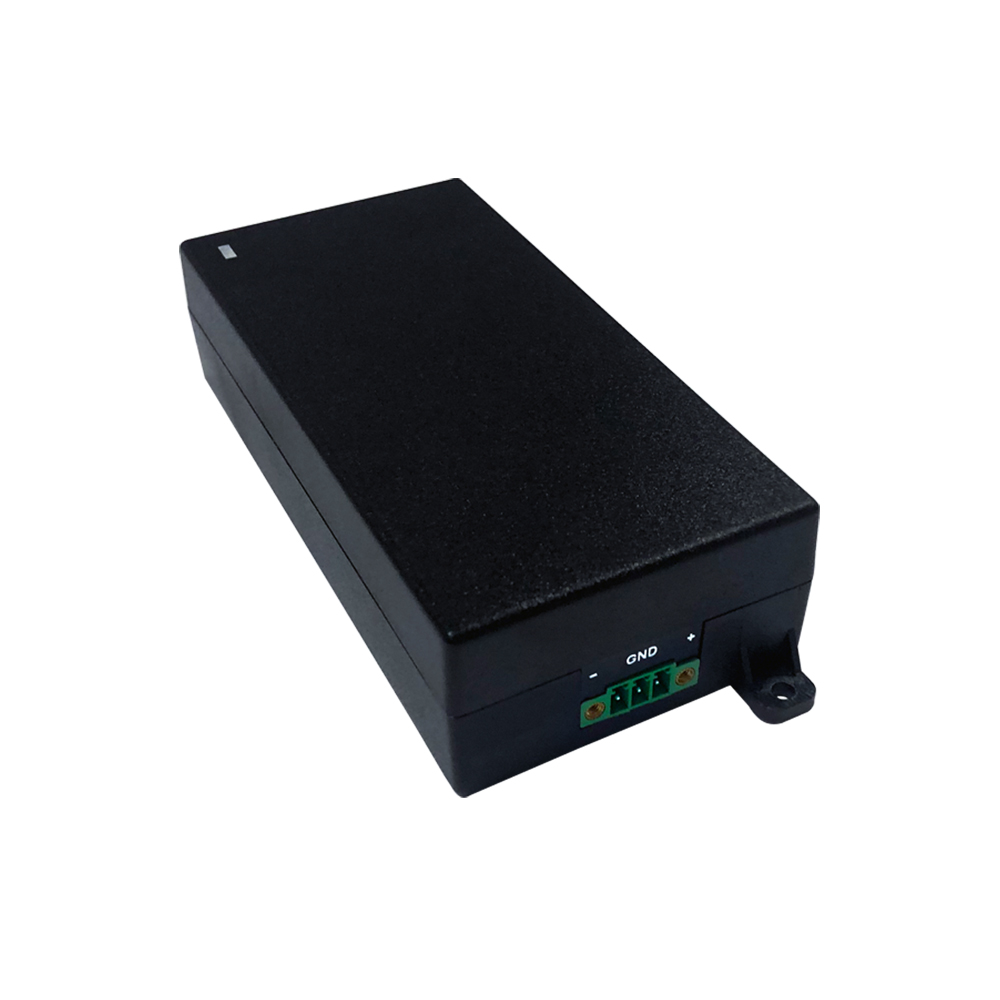

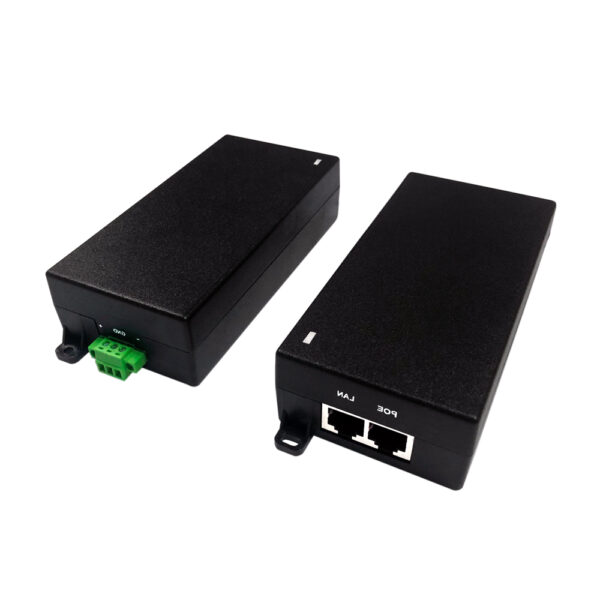

DC INPUT 90W MULTIGIGABIT IEEE802.3BT ULTRA PoE INJECTORS

The gigabit Ethernet POE injector The max output power of the POE port is upto 90W the data access port
supports 10/100/1000 self adaption, support power supply input DC 36 72 V , working temperature 20 ° C ~ +
50 ° C, and the industrial grade chip is used to enhance the design. Support port Surge and static protection, and
comply with FCC, CE, CCC, RoHS standards. Reliable hardware design can ensure your uninterrupted and
stable operation of the automation system. The products are widely used in Wi Fi 6 AP CPE/Backhaul 5G
Network Systems IP Camera , etc

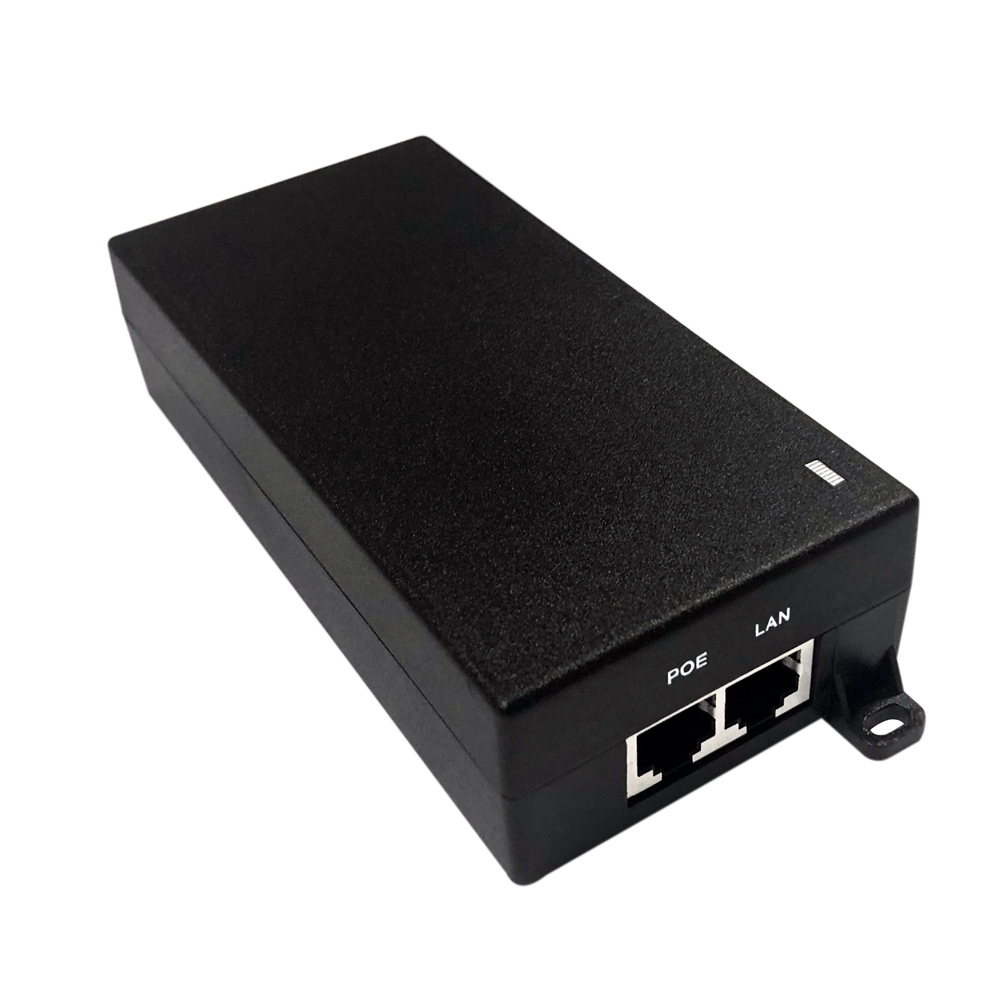

• Support 1*gigabit POE port+1*gigabit Ethernet port
• Compatible with IEEE802.3af 15.4W ）、 IEEE802.3at 30w and IEEE802.3bt 9 0w
• Support power supply input D C 36 72 V
• Plastic shell No fan, no noise, dust proof working temperature 20 ° C ~ + 50 ° C
• Support port Surge Protection: 1KV lightning protection; 8KV ESD protection;

Application Environment

• Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
• Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
• Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
• Real-time monitoring: simultaneous transmission of real-time control signals, images and data
• Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic
  interfer ence and long distances

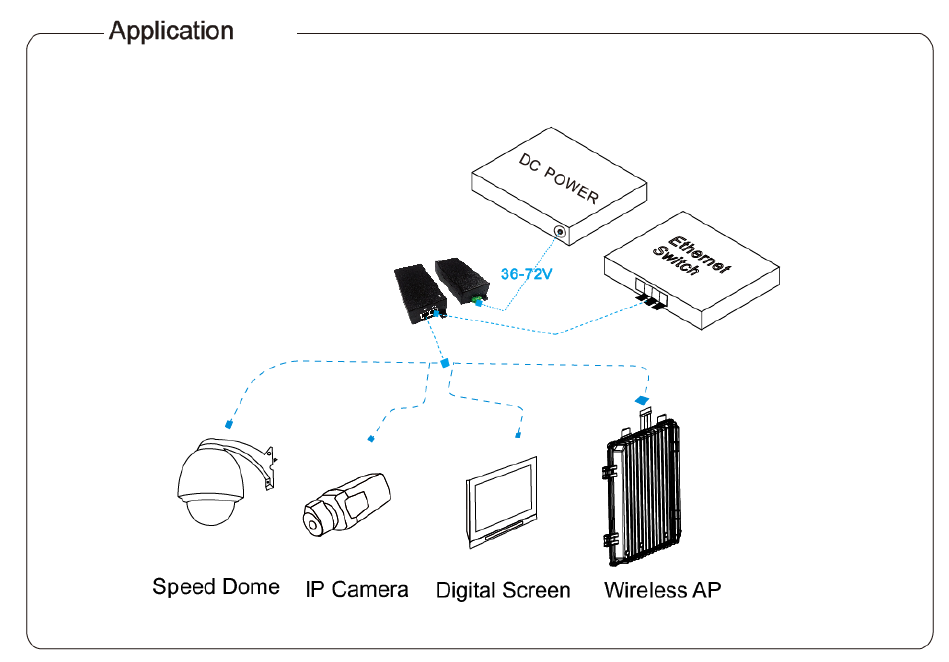

Connection schematic diagram

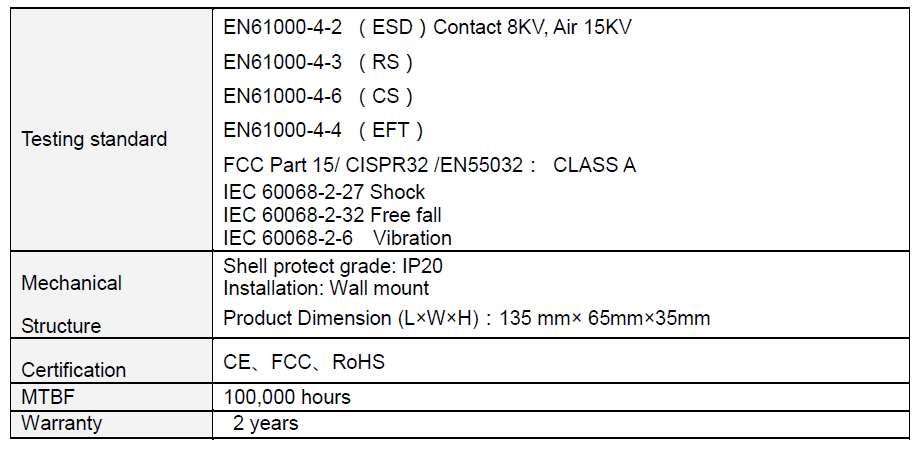

Technical indicators

Order information
